PD Dante – Portable Dante Network Diagnostics Tool and Audio Monitoring
A small portable Dante unit, which allows the monitoring of up to 64 Dante channels at 48kHz (32 channels at 96kHz). The signals are presented to the user via the inbuilt speakers or the headphone jack. The speakers are automatically muted when a headphone jack is inserted. Simultaneous outputs are also available in the form of the stereo balanced line outputs and AES output accessed via the 15way D-type.
The speakers and headphones have independent settings for volume, the unit recalling the last used setting for each when changing between speakers and headphones. The balanced line outputs and AES output can be configured to follow the volume settings of the speakers or headphones. Alternatively, they can be set to independent levels with individual trim controls for each.
PD Dante
- Compact design
- Intuitive GUI
- Powerful feature set
- Including route & network configuration

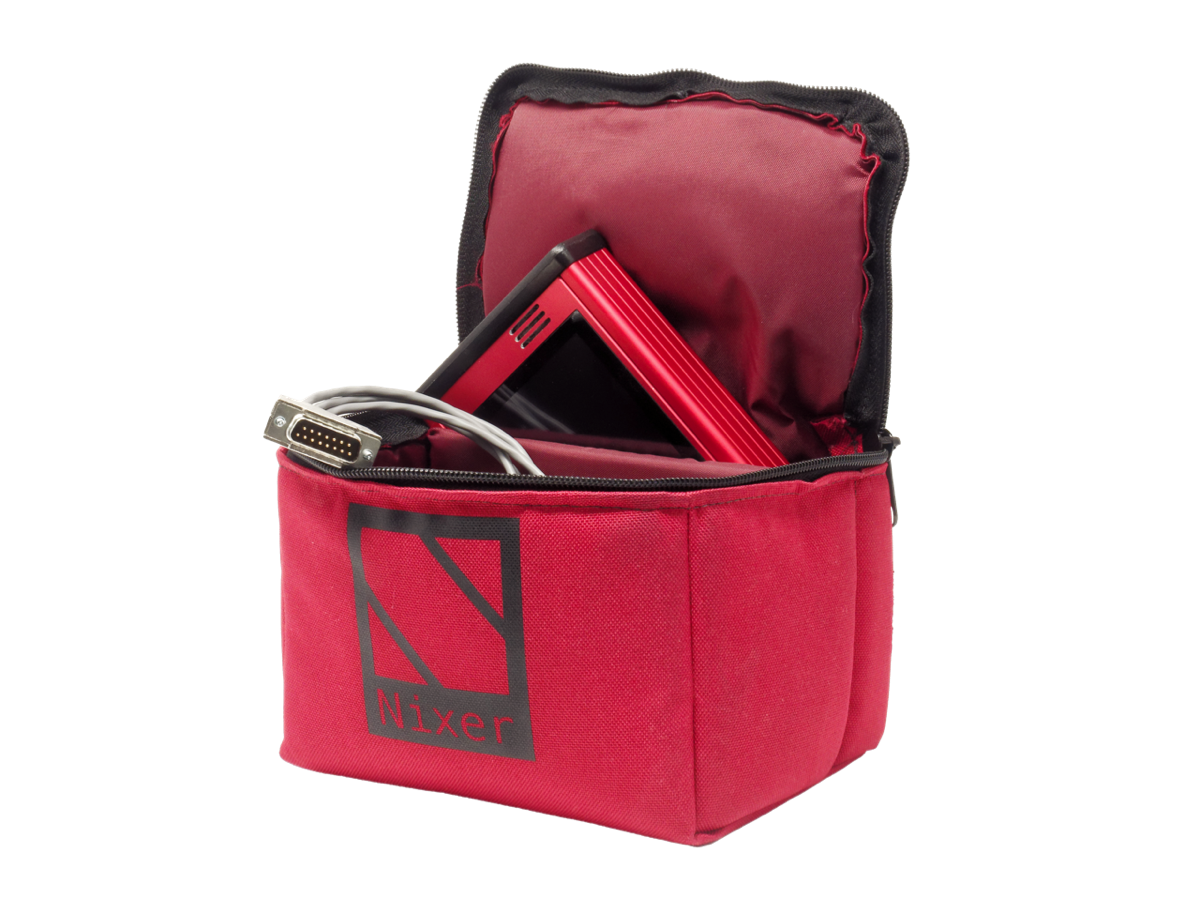

PD Dante padded bag with logo – with compartment for PD Dante and separate compartment for accessories (PSU, Breakout cable etc) including tough rubberised handle
Part No. NIX00550

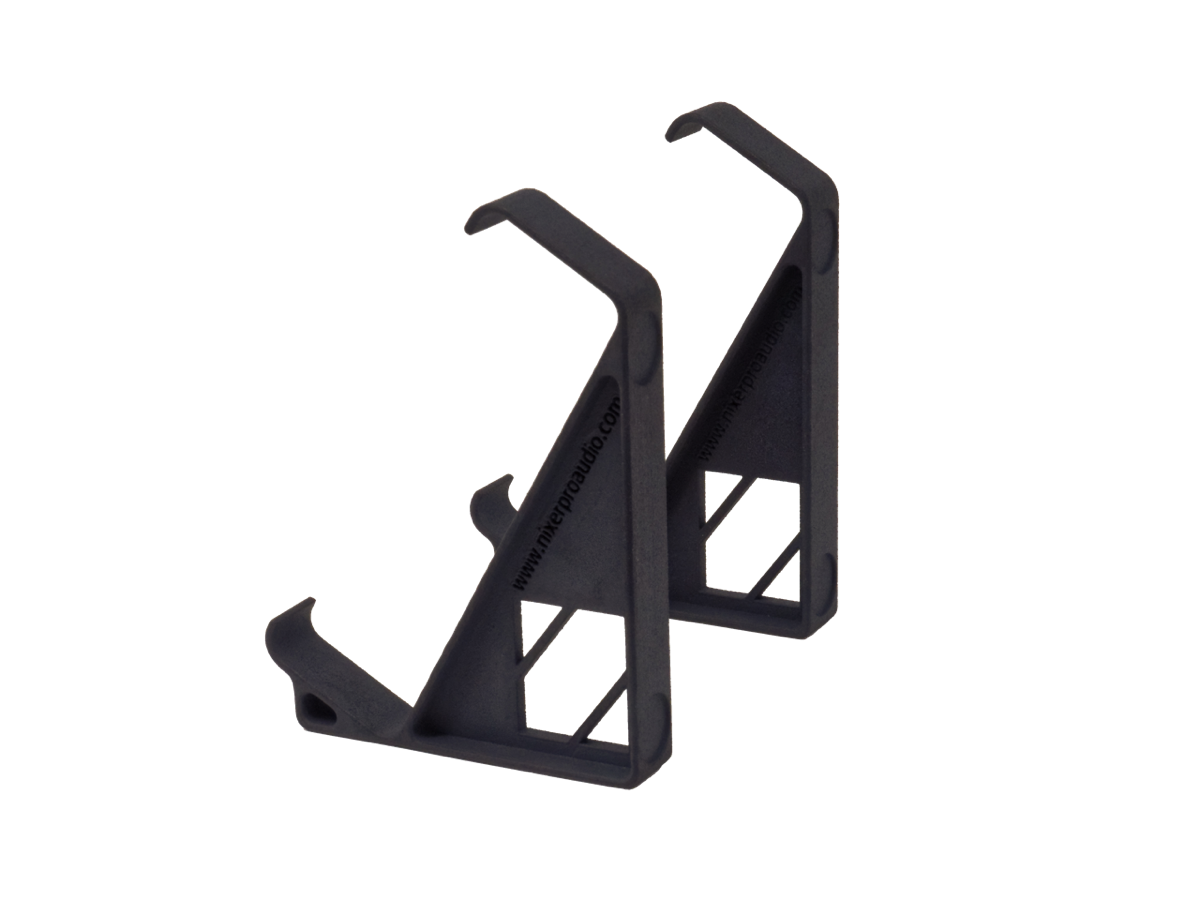

PD Dante 30deg/60deg desktop brackets (pair) – allows PD Dante to be used on a desktop at either 30deg or 60deg
Part No. NIX00538

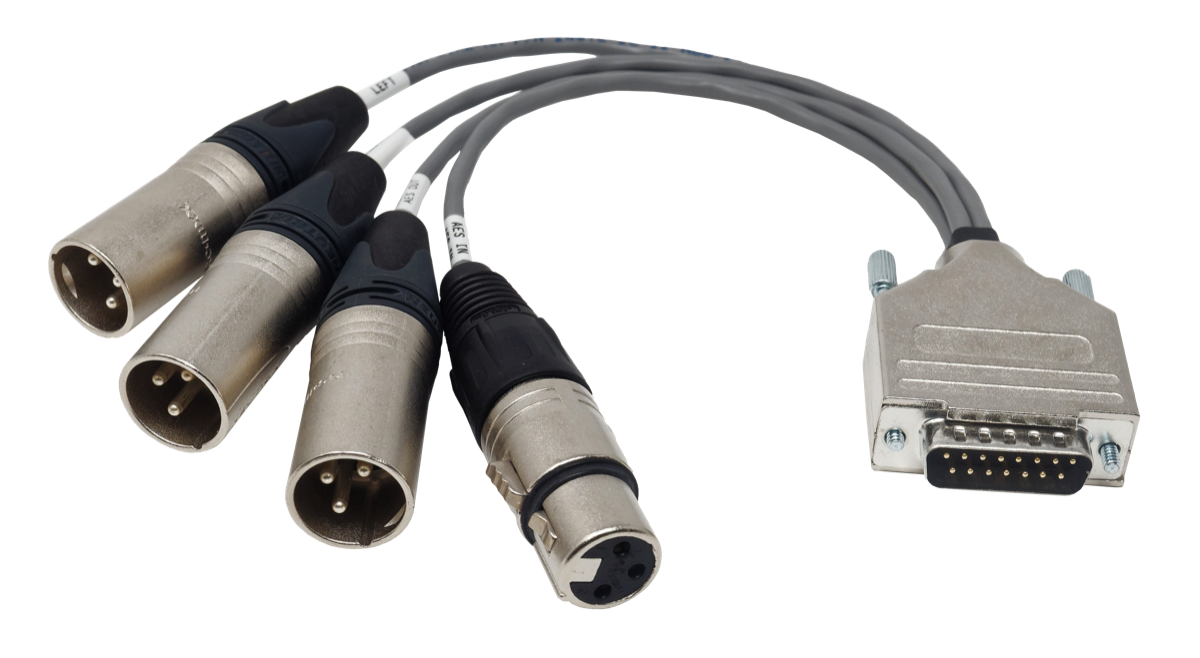

PD Dante breakout cable – 150mm long, 15 way D-sub to 2 x 3 pin Male XLRs for Line Outputs, 1x 3 pin Male XLR for AES output and 1 x 3 pin female XLR for AES input. All cables labelled
Part No. NIX0055

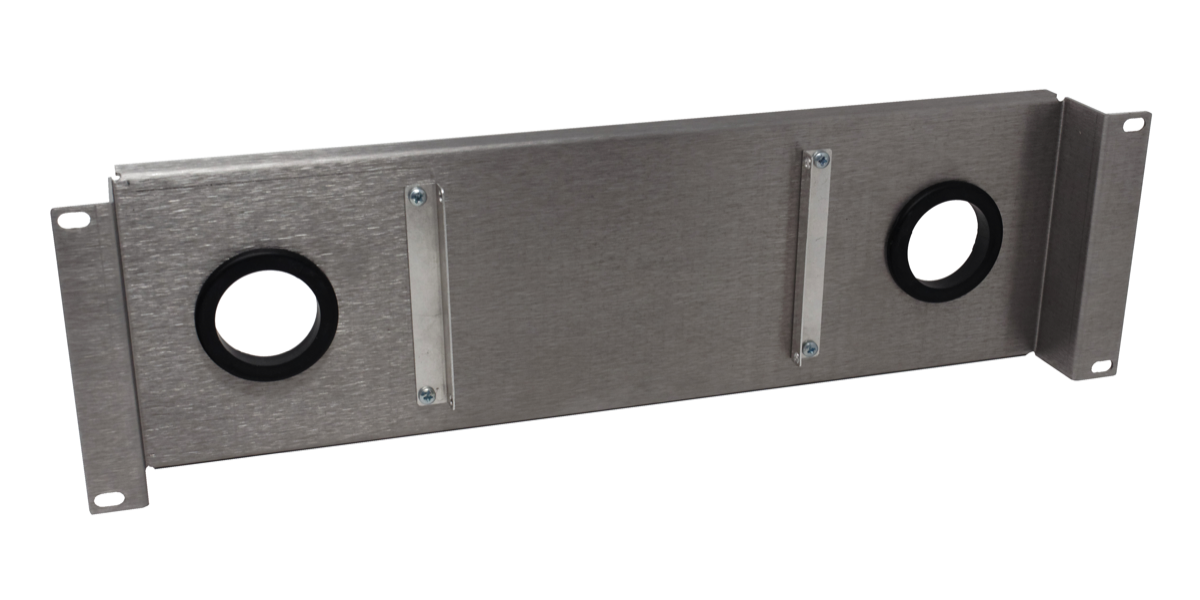

PD Dante 3U 19inch Rack Mounting Bracket (inc NIX00519) – allows PD Dante to mounted in a 19inch rack
Part No. NIX00524

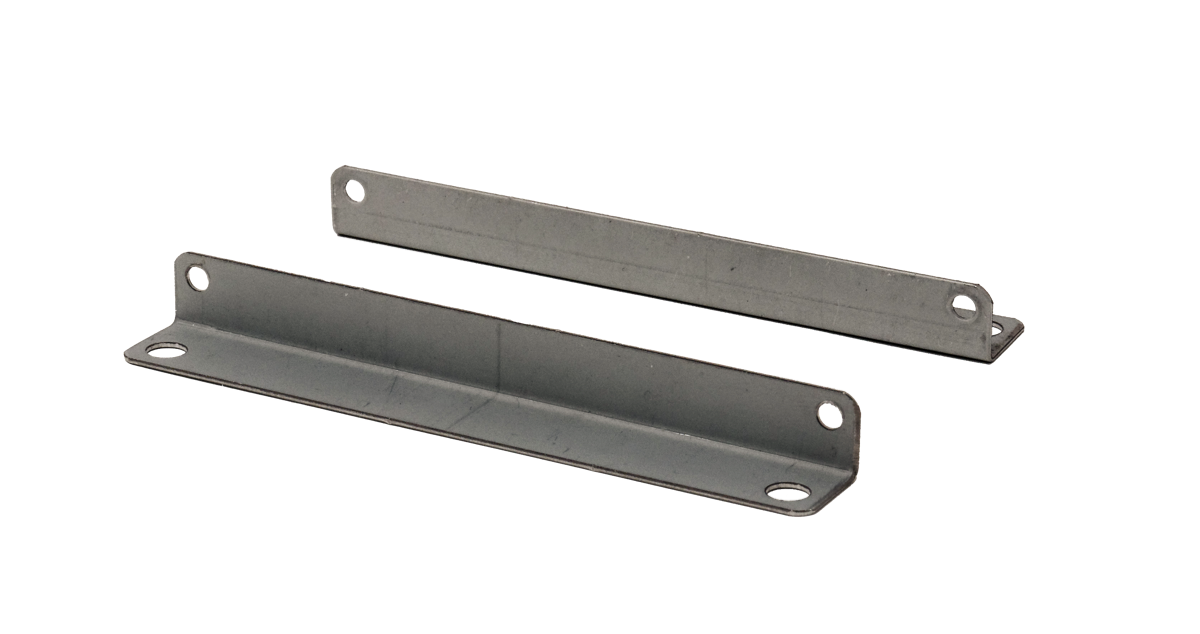

PD Dante Mounting Bracket (pair) – Aluminium mounting brackets which allow for the PD Dante to be fixed to walls, tables, etc. Simply fix brackets to the sides of the PD Dante using their existing screws.
Download the drill template to mark out and drill the surface where the PD Dante is to be mounted (Note: wall fixing screws not supplied)
Part No. NIX00519
For full specifications
